CCTV systems troubleshooting

When trouble shooting CCTV systems, one needs to follow the basics.

• It is more common now, to blame Load shedding for CCTV equipment not working anymore.
• If your monitor has a no signal error present, then the fault finding is more difficult, the starting point of fault finding is also different.

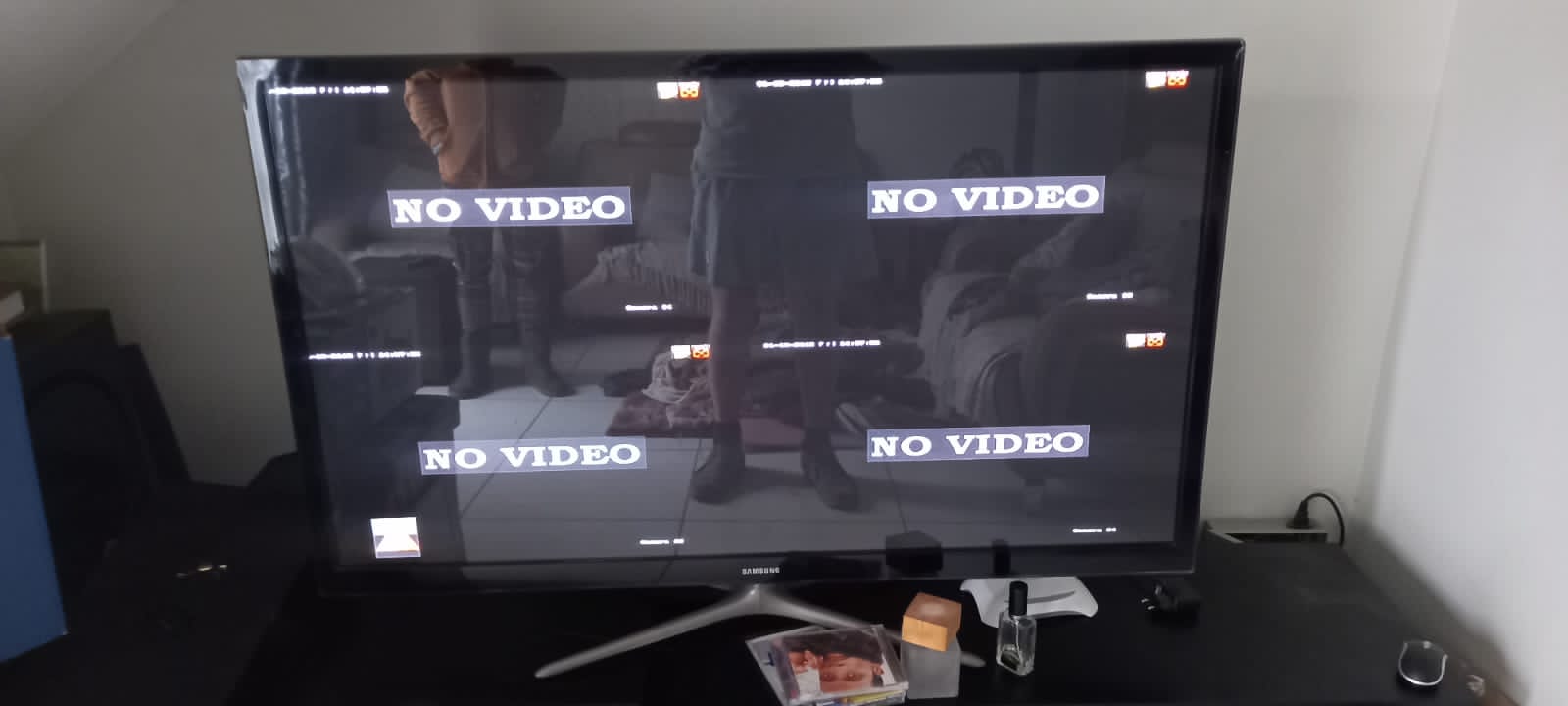

• When your DVR machine is still displaying its frame work on the monitor and all your cameras are down, it is easy to trouble shoot CCTV systems.
• Such a fault points to the cameras not giving images through, when all CCTV cameras are down it points to the CCTV Cameras power supply source.
• When doing fault finding on CCTV systems;
• Make sure that all equipment is still plugged in and switched on.
• It is common to accidentally move equipment for cleaning purposes and during the moving, electrical connections could become disturbed.
• CCTV systems normally consists of 5x components.
• The dvr machine with its own power supply and image signal cord to the tv set/ monitor.
• The cameras present which are connected with wires back to the CCTV DVR machine, NVR machine.
• The power supplies powering the cameras, which could be one big power supply or individual power supplies for each CCTV camera.
• When a on/ off trouble condition appears (camera coming on and off at times) it is a indication of a poor electrical connection between the camera and the DVR/ NVR or the camera power supply.

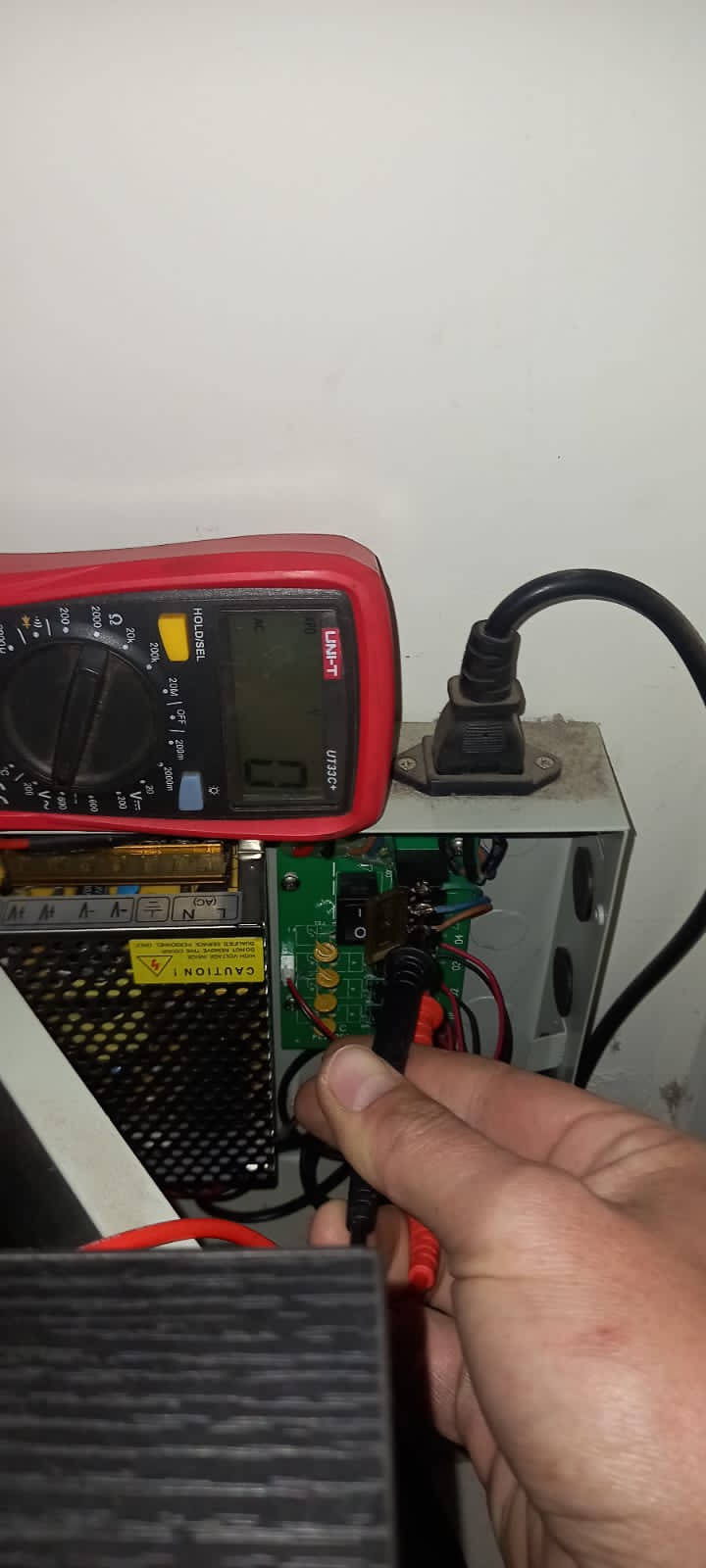

Fault finding CCTV systems where the DVR machine is still working, indicates a camera power problem to all cameras.

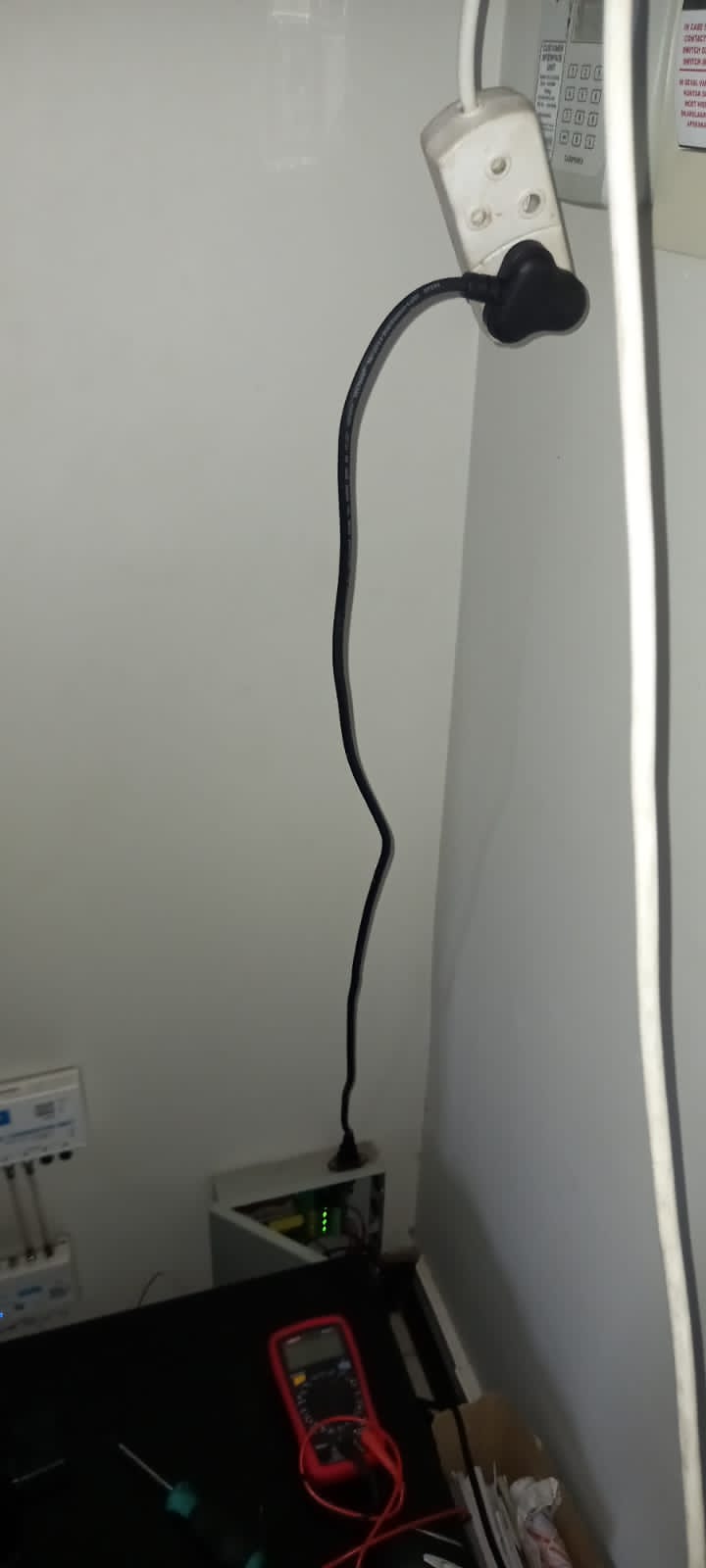

Electrical cord faulty:

It is not common for electrical supply cords to be faulty.

The faulty cannot bee seen visually.

Fidling with the electricall supply cord indicated that the CCTV camera power supply would come on and off, which indicated the power cord was faulty.
